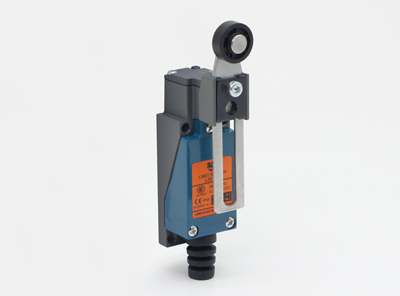

Model
|
ME8108
|
|
Voltage
|
250V
|
|
Electric Current
|
5A
|
|
Protection level
|
IP65
|
|
Package
|
Single PCS
|
|
Size
|
29*25*97.5mm
|
|
Certification
|
CQC CE
|
|
Operating speed
|
5mm-0.5m/s
|
|||
|
Operating life
|
Mechanical: 1,000,000 operations/min Electrical: 200,000 operations/min
|
|||
|
Initial insulation resistance
|
100MΩmin.(at 500VDC)
|
|||
|
Initial contact resistance
|
25MΩmax.
|
|||
|
Dielectric strength
|
Between non-consecutive terminals
|
1,000Vrms, 50/60Hz for 1 min
|
||
|
Between non-current carrying
metal parts and each terminal |
1,500Vrms, 50/60Hz for 1 min
|
|||
|
Between ground and each
terminal |
1,500Vrms, 50/60Hz for 1 min
|
|||
|
Vibration resistance
|
10-55Hz,1.5mm double amplitude
|
|||
|
Max.shock resistance
|
Destruction: 1000m/s²
Malfunction: 300m/s² |
|||
